Manifolds

For SF6 gas handling on multiple gas compartments at the same time

3-718-R006 / 3-718-R036 / 3-718-R002
DILO’s cylinder manifold helps to significantly increase the efficiency of gas handling with service carts in the GIS unit production or at utility companies.

The standard DILO manifolds are equipped with three DN20 connections as well as a DN20 or DN40 connection to the service cart. Thus, it is possible to recover, evacuate, or to fill three gas compartments at the same time.

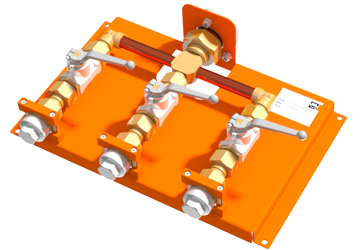

DILO Cylinder Manifold 3-718-R006

3 x DN20 / 1 x DN40
Part Number: 3-718-R006

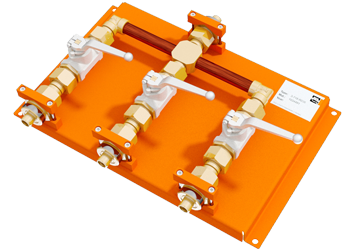

DILO Cylinder Manifold 3-718-R036

4 x DN20
Part Number: 3-718-R036

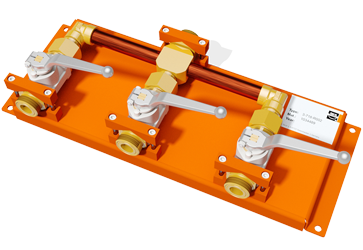

DILO Cylinder Manifold 3-718-R002

4 x DN20 without couplings
Part Number: 3-718-R002

Other features:

  • Gas-tight version
  • Self-closing couplings
  • Ball valves individually lockable
  • Suitable for wall assembly

Manifolds with solenoid valves as well as standalone panels are available upon request.
