Multi-Analyzer for Helium

For high accuracy, emission-free analysis of helium

With its innovative equipment and intuitive user interface, the MultiAnalyser He perfectly meets the user’s requirements and is ready for operation immediately after switching on. High-quality manufacture and ergonomic design guarantee the quality standards for a compact and maintenance-friendly measuring device with high measuring accuracy. This multi-functional measuring device allows the emission-free determination of up to two measuring parameters with only one sample.

Depending on the individual device configuration, the following values can be determined:

  • He/Nvolume percentage (%)
  • Moisture concentration

The MultiAnalyser He allows different methods of operation for emission-free handling of the measured gas:

  • Internal storage of the measured gas (max. inlet pressure 35 bar pe) into the device, into an external cylinder or an external discharge gas collecting bag.
  • Pumping the gas back into an external cylinder, vessel or gas compartment (up to 10 bar pe).

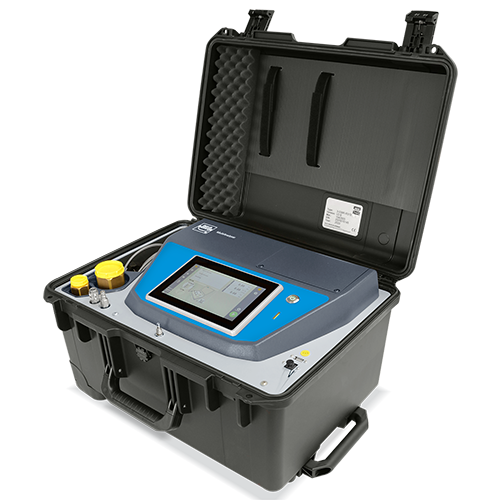

The measuring device offers automated operation via a 7" touch screen. It is possible to operate and exchange data by means of mobile end devices such as smartphones, tablets or laptops via WiFi. Complete with a rolling case, the measuring device can be transported in a safe and comfortable way. Modern control technology in conjunction with a user-friendly interface in several languages make device operation simple and convenient.

DILO's Helium Multi-Analyzer


  • battery operation and/or external power supply
  • indication of moisture concentration in dew point °C or °F, referred to atmospheric or inlet pressure, reversible to pmv or ppmw
  • indication of inlet pressure in bar, psi, MPa, and kPa (in pa or pe) to be selected on the touch screen
  • 6 m long connecting hose
  • 2 m long electrical connecting cable with mains plug
  • USB flash drive with data file for evaluation and reading out of measuring results
