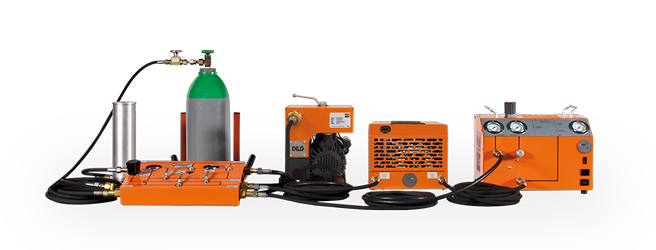

Mini Series as portable version with individual components

Mini Series – modular

The versatile Mini Series Modular line consists of the following individual components which can be assembled as complete unit:

Mini Series Modular
  • B095R12 Compressor unit (1,6 m³/h)

For liquid SF6 storage

  • B093R30 Vacuum compressor unit (3,3 m³/h)

For recovery of SF6 gas down to 5 mbar in conjunction with the compressor

  • B093R51 Suction pump unit (3 m³/h)

For recovery of SF6 gas < 1 mbar in conjunction with the compressor

  • B078R09 (with ball valve) Portable vacuum pump unit (16 m³/h, < 1 mbar)

For evacuation of air

  • B078R19 (with solenoid valve) Portable vacuum pump unit (16 m³/h, < 1 mbar)

For evacuation of air

  • B077R20 Prefilter unit (pe 10 bar)

For adsorption of moisture, solid and gaseous decomposition products

  • B132R01 Operating panel for Mini Series

For easy handling of individual components
