SF6 gas storage tanks

Safe storage

B176R..

These tanks offer sufficient volume to store or withdraw even large gas quantities in gaseous or liquid form. This series features a special feature: the entire gas content can be withdrawn at once without having to heat the tank.

The tanks are equipped with digital weight scales. These weight scales allow the user to determine the filling weight with an accuracy of ± 500 g, thereby facilitating SF6 gas monitoring and the registration of the gas quantities in accordance with regulations.

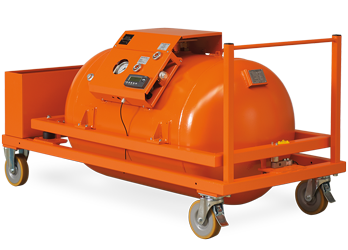

DILO SF6 Storage Tank B176R02

B176R02

Equipment to measure gas pressure

View of the operating panel

Other features:

  • Available with a storage volume of 300 l, 600 l or 1,000 l
  • For liquid or gaseous storage or withdrawal of gas
  • Digital weighing scales (measuring accuracy ± 0.5 kg)
  • Pressure indication in bar, MPa, psi
  • Discharge of the weighing system for transportation is not required
  • Additional tool box for hoses and accessories
  • Stable frame with driving rod
  • Steerable and fixing rollers for comfortable transportation
  • Max. operating overpressure 50 bar
  • Version in accordance with EC 97/23 pressure equipment directive ASME and SQL approval are available as Option
