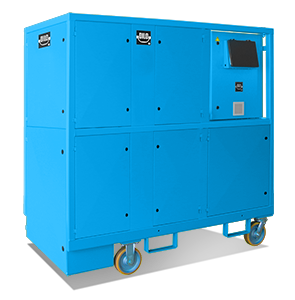

Gas mixing unit

Unit for the precise production of gas mixtures

Special features

• Accuracy of the gas mixtures to be produced up to ± 0.1 vol. %.
• A total of up to four different gases can be mixed
• Mixing to the desired target weight or to the desired final pressure
• Final vacuum after recovering the mixing vessel: < 1 mbar
• Storage of the gas in adequate pressure vessels after the mixing process
• Storage pressure up to 100 bar
• Operation via 10” color touch panel

Technical data
Oilfree compressor: 5.7 m³/h, 100 bar
Oilfree suction pump for recovery of cylinders: 3 m³/h, final vacuum < 1 mbar
Oilfree suction pump for recovery of the mixing vessel: 15 m³/h, final vacuum < 1 mbar
Volume of the mixing vessel: 100 l

Do you have any questions or a specific application? We are happy to help. Please contact us.
