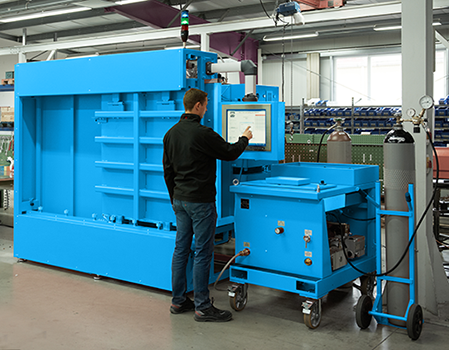

Helium leak testing unit

Unit for quick and precise leak testing of vacuum tight series components and helium recovery

Special features

  • Filling of the test object with helium inside the chamber (integrated gas handling)
  • Built-in calibration reference leak
  • Evacuation of the chamber
  • Test time approx. 5 minutes
  • Integrated helium recovery
  • Manual sliding door with pneumatically controlled door lock
  • Automatic control and colour touch panel with PC connection

Technical data

- Leak detection system: mass spectrometer
- Smallest detectable leak rate of the leak measurement system: 1x10-11 mbar l/s
- Chamber size: approx.: 1.3 m³
- Pumping performance: 500 m³/h with final vacuum 1x10-3 mbar

DILO helium leak testing units

Applications:

Automotive industry
-Common rail injection systems and fuel pumps
-Oil and cooling circuits on cylinder blocks and cylinder heads
-Refrigerant vessels and cooling hoses
-Components of brake systems etc.

Refrigeration and air conditioning technology
-Heat exchangers, refrigerant hoses, air-conditioning compressors, evaporators, air-conditioning lines, charge air coolers

Plant engineering
-Pumps, fittings, valves

Other fields of application
We recommend DILO helium leak testing units whenever a high tightness level of the components to be tested is required.
